2008 Alfa-Laval Complete Olive Oil Line Iberia 4003 X37 VS EXPORT - ARA SYSTEM

Alfa-Laval Complete Olive Oil Line

(New Reduced Price)

Iberia 4003 X37 VS Export - ARA System

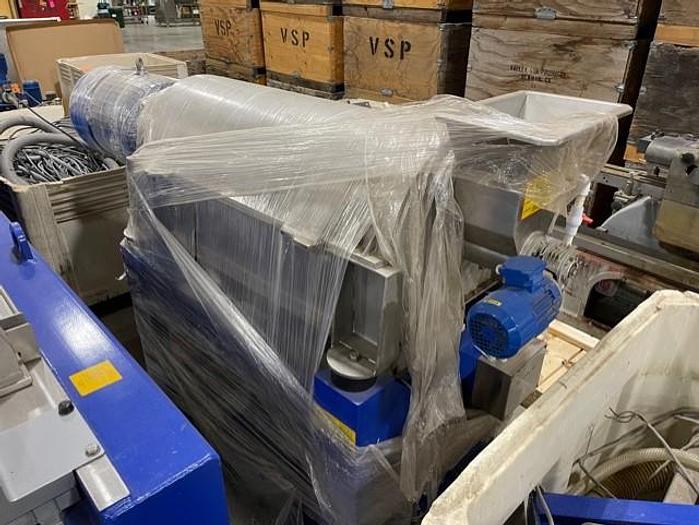

(2) Alfa Laval Hammer Crushers

For crushing olives. Screw feeder of stainless steel AISI 304 construction-

Gearmotor screw 0.37 kw(70 RPM)- Rotating hammers with 3 removable plates-

Grid with different grading holes- All structure of stainless steel AISI 304

construction-Motor 29 KW (2,900 RPM)

Olive de-pitting machine - Comprised of (2) screw conveyors of stainless steel AISI 304 construction -

Gear motor screw 0.37 KW(70 RPM)-Grid with adjustable blades-All structure

of stainless steel AISI 304 construction-

Motor 18KW (2900 RPM)-Mono pump to feed the malaxers.

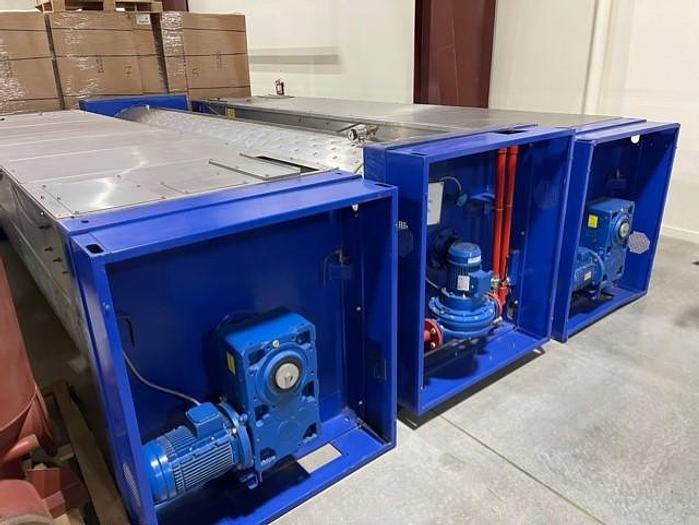

(3) Alfa Laval Malaxers For optimum malaxing of olive paste. 1050 Gallon Vessel. System consists of ;

A stainless steel AISI 304 tank fitted with a Stainless steel jacket for hot water circulation,

to achieve the optimum paste temperature -

Central malaxing screw in stainless steel AISI 304- Gearmotor 1.1Kw (17 RPM) -

Gearmotor vertical screw conveyor 1.5HP(324 RPM)

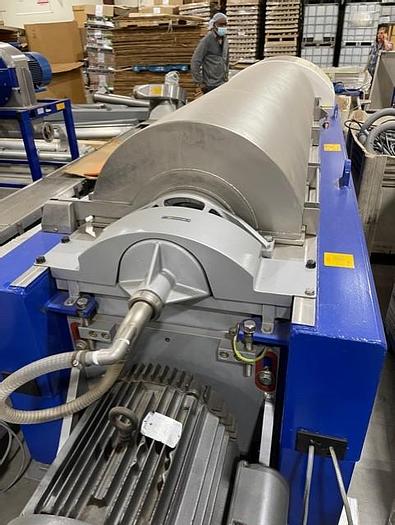

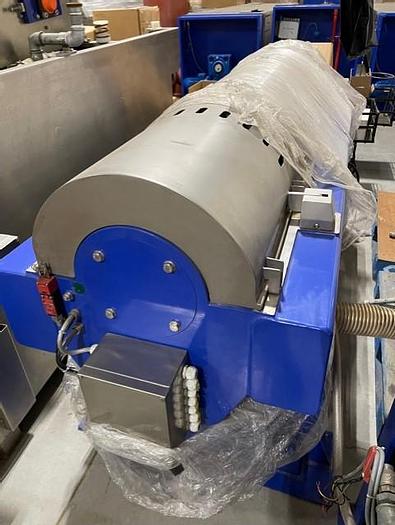

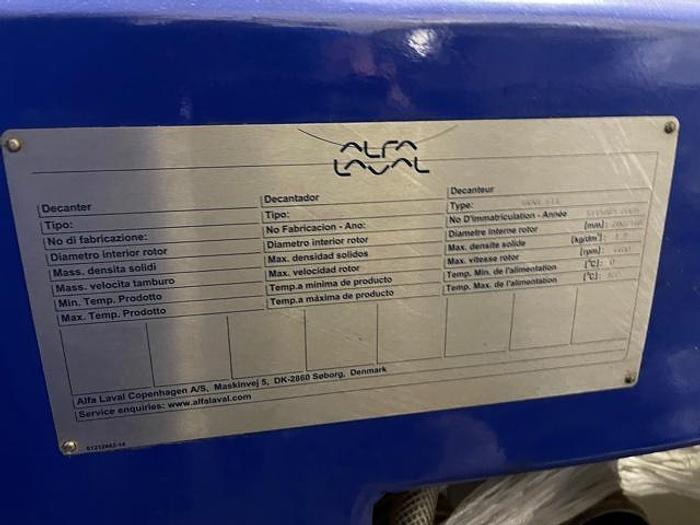

Alfa Laval Centrifugal Extractor - Horizontal Axis Type UNVX X913

Continuous separation of the oil of the sludge water and husks.

The decanter is equipped with the Alfa Laval Ara system-

an exclusive design which reduces water consumption and

gets the utmost extraction yield of oil of the best quality.

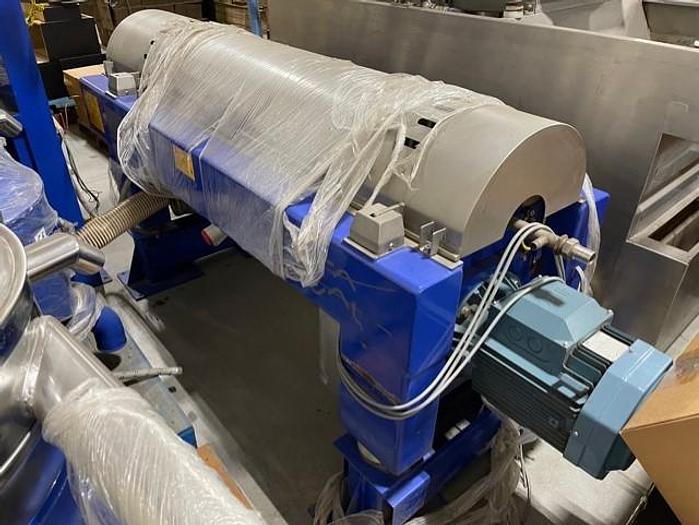

Alfa Laval Centrifugal Extractor - Horizontal Axis Type UNVX X37

(New Reduced Price)

Continuous separation of the oil of the sludge water and husks.

The decanter is equipped with the Alfa Laval Ara system-

an exclusive design which reduces water consumption and

gets the utmost extraction yield of oil of the best quality.

The extractor comprises - Frame in stainless steel AISI 316 with

covers which can be opened.

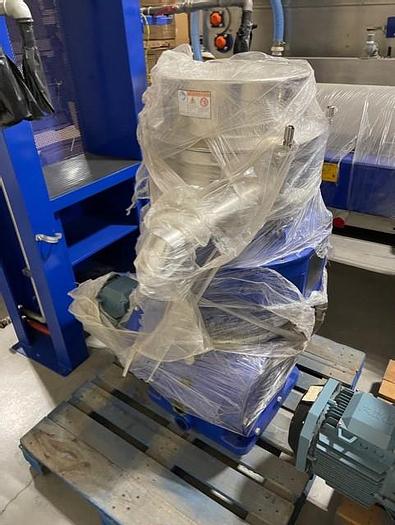

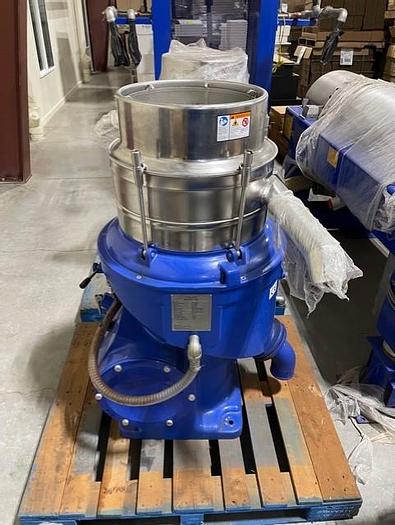

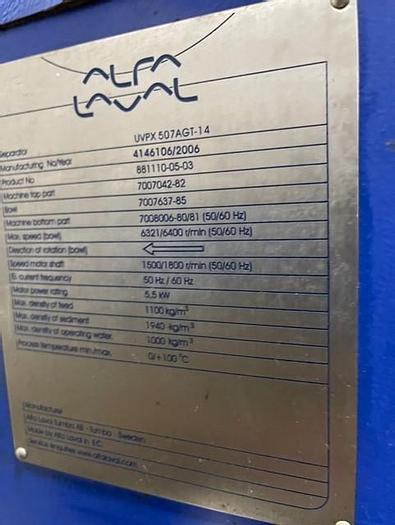

Alfa Laval Centrifugal Separator with Vertical Axis Model UVPX-507-AGT14

with automatic discharge.

Used for the final clarification of the oil.

Pulp Bailer

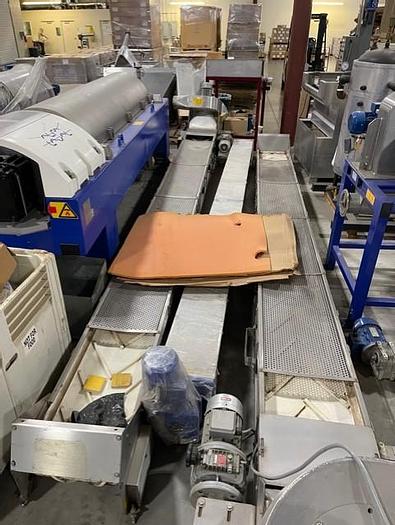

Complete Olive Oil Line

Rated 8 Tons / Hour

MFG 2008

Only Ran 90 Hours

Like New Condition!

Unit is Located Off Site - Northern California
