Dunkley Pail Filling Station with Fruit Hopper

Contact us for price

Stockton, CA

orCall 209-465-3688

Description

Dunkley Pail Filling Station with Fruit Hopper

  • They're set up to fill & lid 4-gallon plastic pails with fruit for freezing.

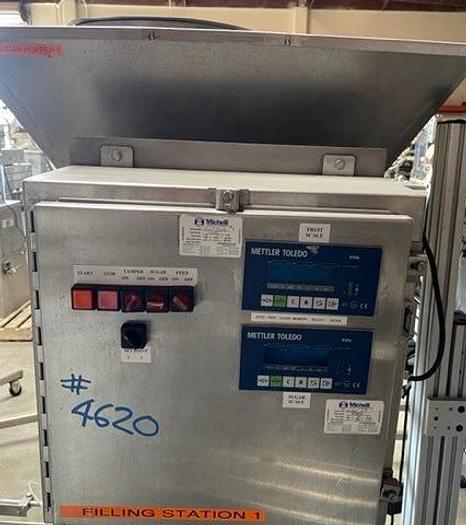

  • Stainless steel with electronic scales by Metler toledo Scale Head
  • Approx. 10 cycles per minute.
  • All scales are all 120v.
  • One filler works left-to-right @ 480V 3ph 20A.

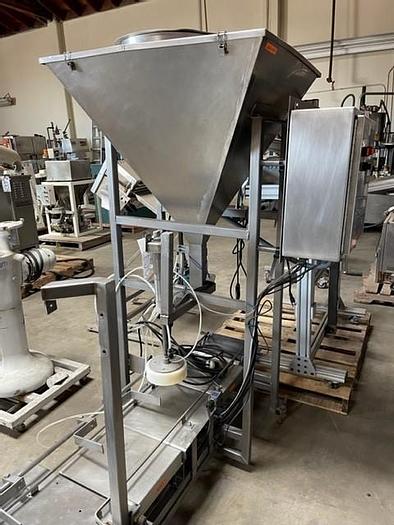

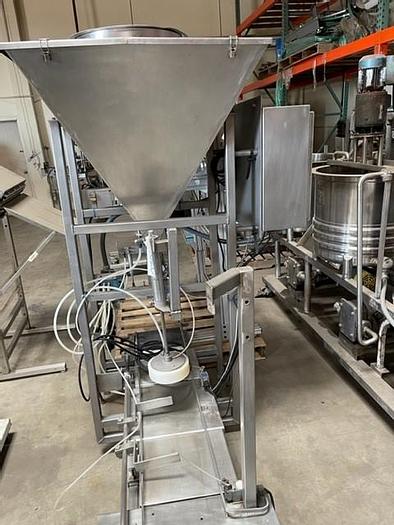

  • includes overhead sugar hopper with pneumatic operation.
  • The fillers have 2 weighing stations & operate automatically.
  • Station #1 = operator manually feeds in pail to await filling
  • Station #2 = fill pail on 1st electronic scale
  • Station #3 = intermediate station waiting for 2nd action
  • Station #4 = 2nd action on 2nd electronic scale (such as trickle-feed top-off with additional fruit, add sugar cap or conduct check-weigh)

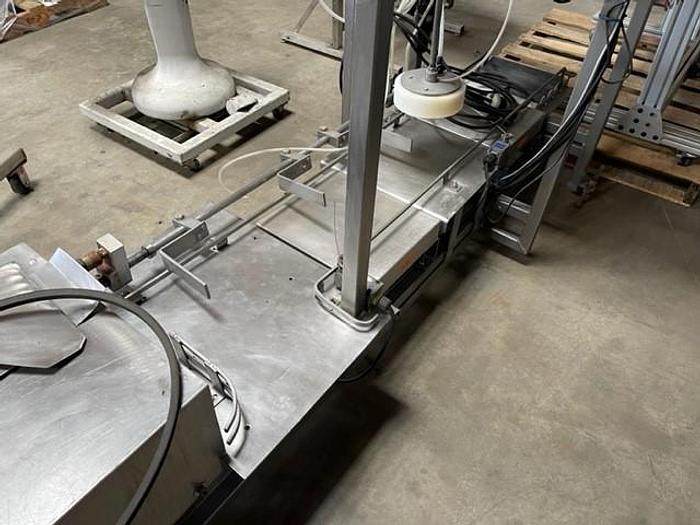

  • After filling, between filler & lidder, an operator lays the cover appropriately on the pail.
  • The lidder then pulls the covered pail thru & presses the cover into place.
  • Lidder @ 125V 1ph 15A.


Specifications

ManufacturerDunkley Pail Filling Station with Fruit Hopper
ConditionUsed
Stock Number4620
