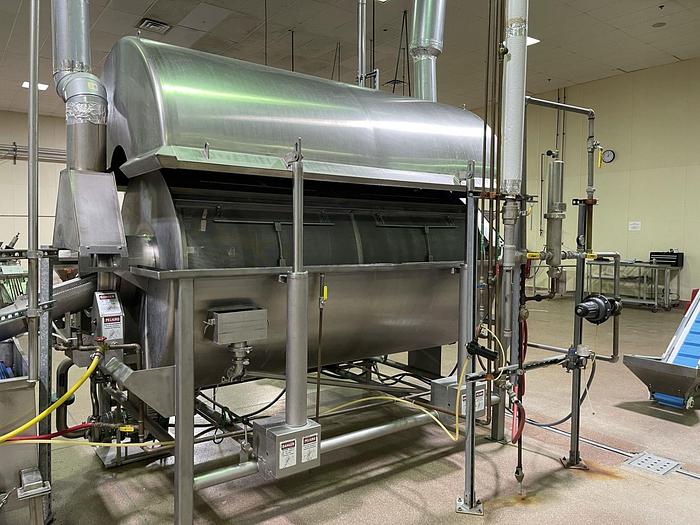

2002 Hughes Co. Stainless Steel Rotary Hot Water Blancher System

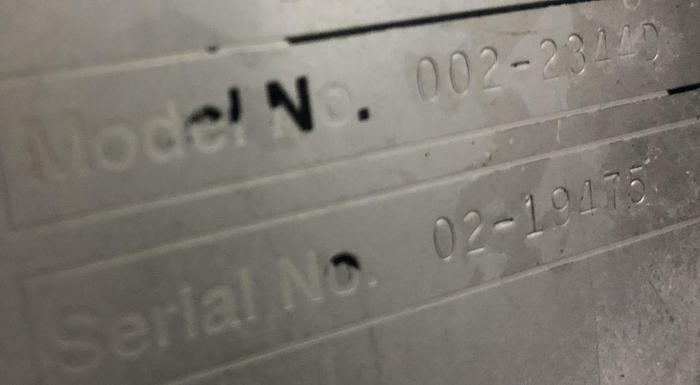

Hughes Co. Rotary Blancher Model:002-23440

Serial: 02-19475, Year: 2002, Not put into operation until 2015,

Blancher 8' Long x 4'Diameter , Stainless Steel Contact and Construction,

Capacity: 2,000 Pound Per Hr, Product Bulk Density (wet): 50 lbs/cu.ft.,

Water Takeup Rate: 2:1, Product Specific Heat: 0.9 Btu/lb-F,

Cook Time: 2 Min, Cook Temp: 210F, Makeup Water Temp: 50F, Water Capacity: 355 gal,

Water Overflow: 3 gal/min, Steam Pressure: 100 psi,

Steam Processing: 1,000 lb/hr. Drive Motor: 1 hp,

Screen Perforations: 1/16 dia.,

Screen Type: 100% Removable, Steam Exhaust: 8" dia vent stacks at the end of cover,

Control: Allen Bradley,

Water Capacity Gal/ft Length: 38.5, Maximum Water Depth: 18.5", BTU's Required: 398,152

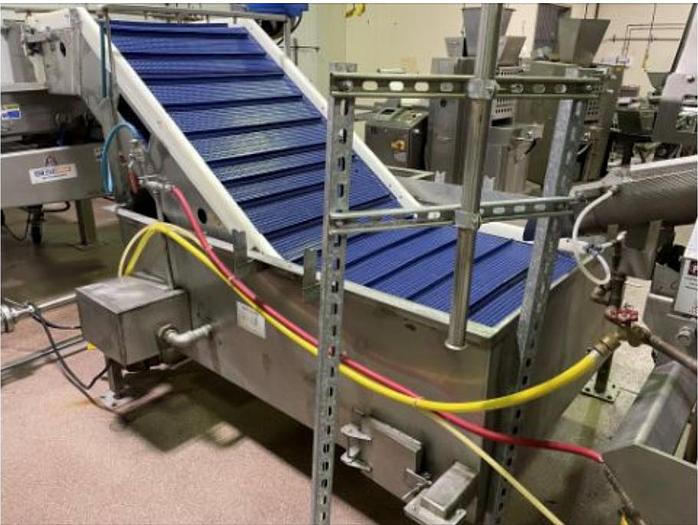

Includes a Incline Conveyor - Elevator

Vibratory Conveyor:

Key Technology Iso-Flo Vibratory Conveyor 36" x 72"

Max 7 stroke shaker table w/ pneumatic dryer bar.
