Complete Durapak M7 Bagging Machine Sytem

Complete Durapak M7 Bagging Machine Sytem

Contact us for price

Location:Michigan

orCall 209-465-3688

Description

Machine Is located currently in Michigan at Durapak

*It has been updated - reprogramed.

Cleaned and Scotch brighted.


(1) Used Durapak M7 bagging Machine System

Includes :

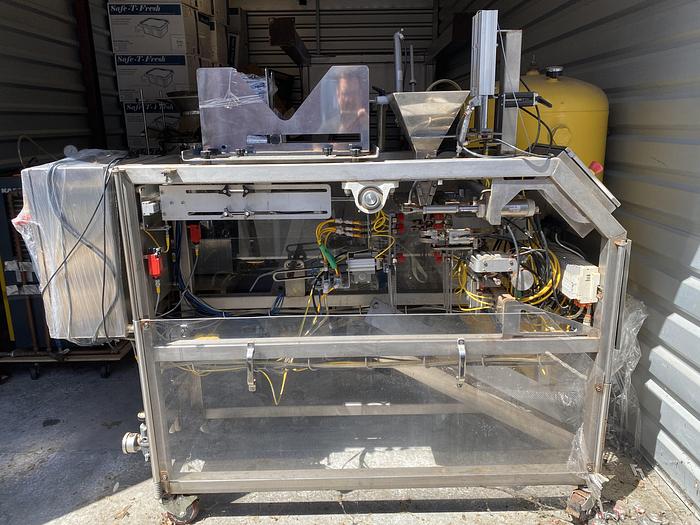

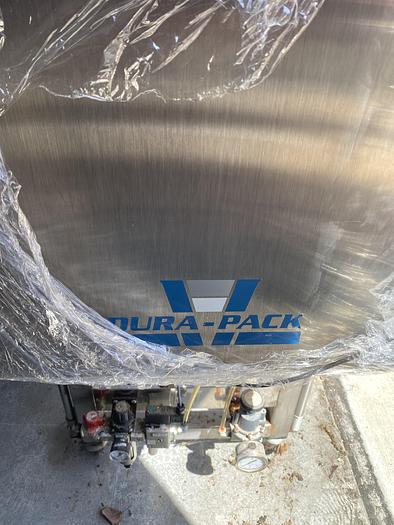

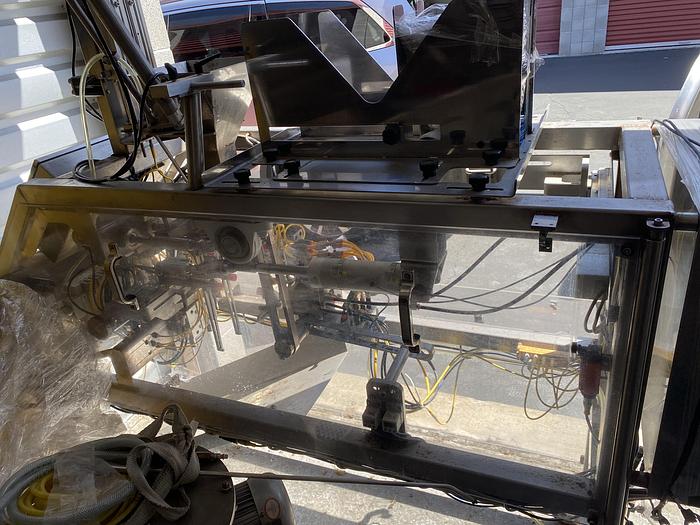

(1) Dura -Pack M7 Fully automatic pre-made pouch filling and sealing machine.(Not as pictured with (2) units).

Bag sizes: 4" W x 6" L to 14" W x 18" L

Bag Weight : Up to 5 KG

Air : 80PSI @ 20 CFM

Power 120/240 VAC -1 PH -60 HZ - 20 Amp

PLC : Allen Bradley MicroLogix 1400

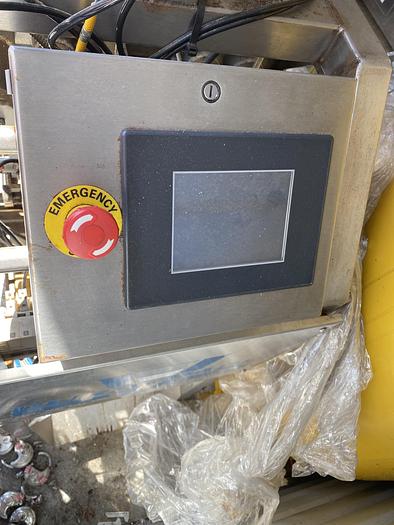

Touch Screen Control: Automation Direct 6"


(1) Base Conveyor System

  • Straight 10' Conveyor section (Stainless steel construction , Plasitc Belt)
  • Pneumatic Escapements for container control

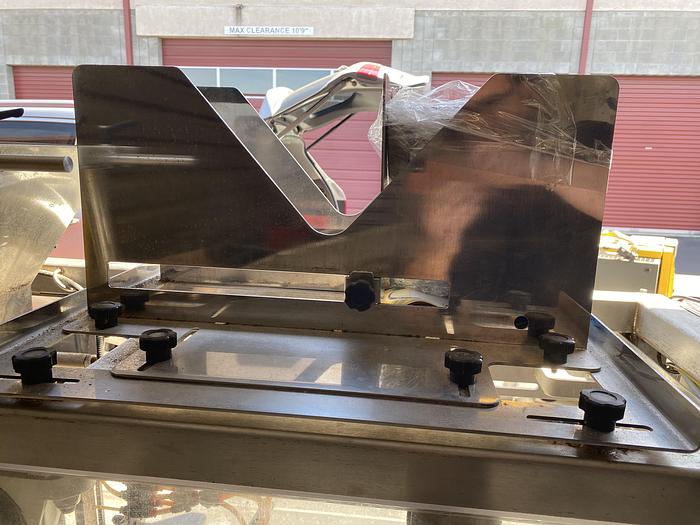

  • Quick Change Funnel System
  • Pneumatic Indexing Funnel for better product control.
  • AB Variable speed control.
  • Touchscreen for conveyor parameter control.
  • Integrated product setting.
  • Downstream interlock for interfacing with additional peripheral components.


(1) Starwheel Container Filling, Settling& Check-weighing System

Modular star- wheel system is easily configurable and customizable to a wide array of applications.

Stations can be configured for filling, settling, check-weighing and level sensing.

  • Intermittent motion to support 20-40 cycles/min
  • (1) Integrated power conveyor 10' /
  • (2) Check-weigh stations(compensates for tare variances in container)
  • (1) Fill station(Includes diving indexing funnel)
  • Integrated & programmable pneumatic settling function.
  • Integrated level check.
  • One reject station.
  • Auto backup detection from downstream equipment.
  • 100% Tool-less change-out pieces.

(1) 304 Stainless Steel Viewing Platform

Four legged stand to full viewing platform. Facilitates improved maintenance, operation, clean-out, and product filling.

Line also includes:

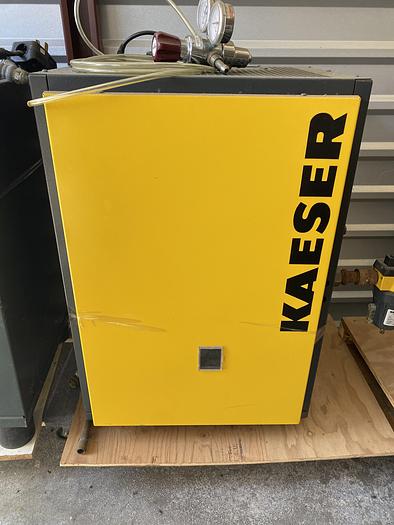

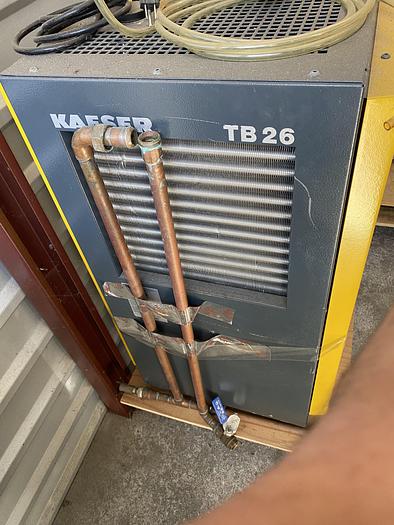

  • Kaesser Air Compressor and Cool Air Generator that is used to operate the bagging system.
  • Citrinix Printer and Soto Label Printers



Specifications

ManufacturerComplete Durapak M7 Bagging Machine Sytem
ConditionUsed
